Hydrofoil Pedestal Track Mounting Hardware

Product Description

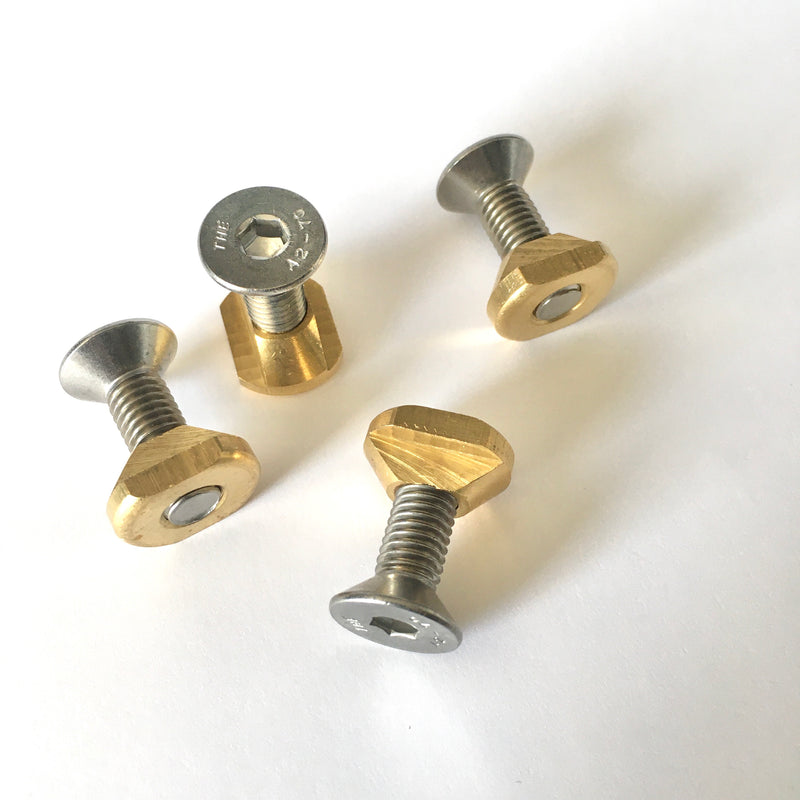

Set of four T-Nuts and four stainless steel M8 screws.

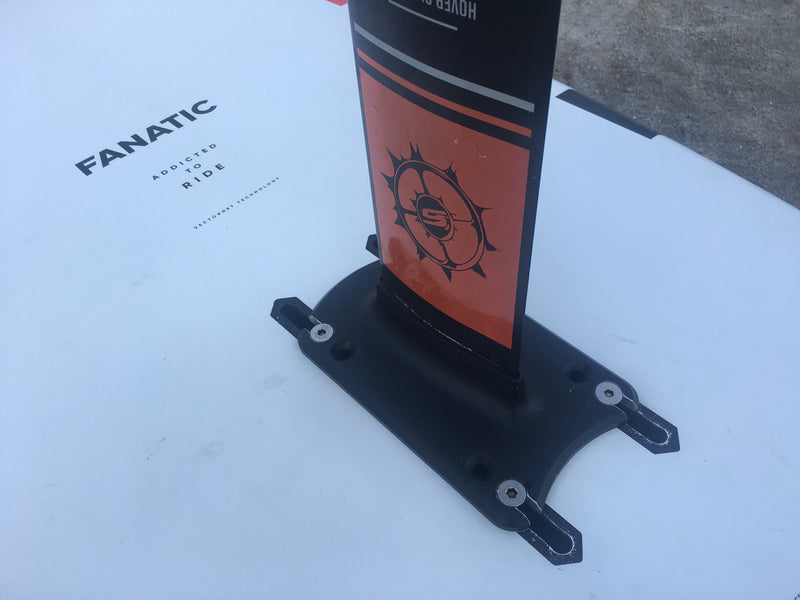

Solid machined brass T-Nut for mounting your hydrofoil with pedestal & track mounting system.  Fits most brands including Slingshot and Fanatic.  T-Nut design (as opposed to a flat, rectangular nut) increases screw hold by more than doubling the number of threads engaged with the screw.  This design has 10+ threads contacting each screw.

Slingshot standard screw is 25mm

Fanatic standard screw is 30mm

Moses standard screw is 35mm

25mm and 30mm will fit most combination of boards and foils.  We use 25mm for Slingshot foils on Slingshot & Fanatic Boards.  If using quick release slots, 30mm is preferred.

We use 30mm for Fanatic Foils on Fanatic boards.

35mm screws are Phillips drive button head with washers for Moses Hydrofoils

Size
$24.00
